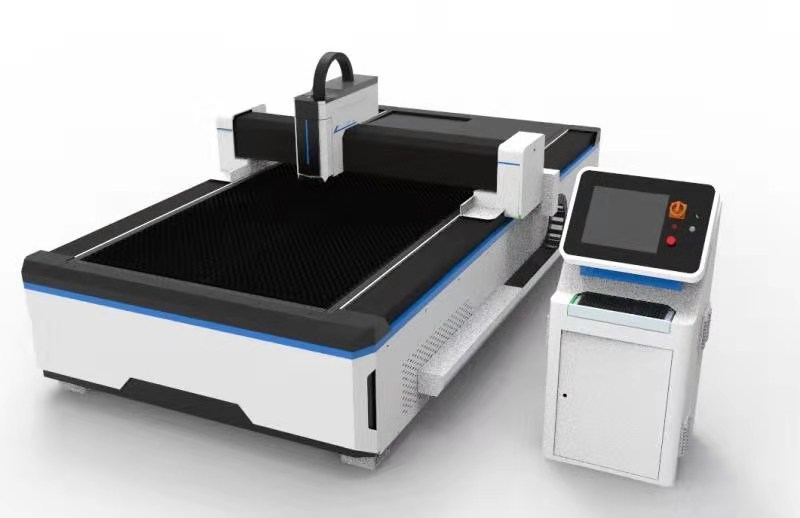

Fiber laser cutting machine adopting world famous Germany IPG fiber laser source and Raycus laser source,Raytools cutting head and dynamic focus system, it can cut and punch different kinds of metal material with high precision and high speed. Since laser is transmitted by fiber , it is no need to maintenance or adjusts the laser optical path , it greatly reduces the machines fault rate and prolongs the working life. Large format cutting area meets the demands of various kinds of metal processing .
Automobile manufacturing, machinery and equipment, electrical equipment, hotel kitchen equipment, elevator equipment, advertising logo, car decoration, sheet metal production, lighting hardware, display equipment, precision parts, hardware products, subway accessories, decoration, textile machinery, food machinery , Construction machinery, ships, tooling, metallurgical equipment, aviation, aerospace and other manufacturing and processing industries;
Laser Cutting machine is suitable for variety of metal plates, pipes ( with special device ), stainless steel, carbon steel, galvanized sheet, pickling board, brass plate, aluminum plate, manganese steel, all kinds of alloy plates, rare metals etc
| Machine Model | TW3015 | |
| Cutting Area(length x width) | 3000mm×1500mm | |
| Laser Model | Fiber laser IPG/Raycus/Max-500W/1000W | |
| Laser Wavelength | 1,070-1,080nm | |
| CS Cutting Thickness | Max. 5mm/10mm | |
| SS Cutting Thickness | Max. 3mm/5mm | |
| Interface | USB,RJ45 | |
| X-Axis | Moving Speed | 50m/min |
| Stroke | 3000mm | |
| Position Accuracy | ±0.05mm/m | |
| Repeatability Accuracy | 0.05mm | |
| Y-Axis | Moving Speed | 50m/min |
| Stroke | 1500mm | |
| Position Accuracy | ±0.05mm/m | |
| Repeatability Accuracy | 0.05mm | |
| Z-Axis | Stroke | 50mm |
| Power Supply Requirement | 380V/50Hz/30A(36A) | |
| Continuous Working Time | 24Hours | |
| Machine Weight | Approximate 4000kg | |
| Dimension(length×width×height) | 4500mm×2300mm×1500mm | |
