With soft switching inverter technology, the cutting current is very stable; High load duration for heavy industry; Cutting current ramping technology reduces torch accessory consumption; Wide grid voltage adaptability; Unique dustproof design, high reliability; Compact structure, small size and light weight, it can be mounted on CNC machine tools; Cutting air source with cheap compressed air, low cutting cost; Precise preset cutting current, steplessly adjustable; With plasma gas pressure detection and indication function; With gas test function, easy to adjust air pressure; With overheat, overvoltage, undervoltage, phase loss automatic protection;
Leadshine stepper Moter and Driver is widely adopted in Chinese CNC router, It’s cheaper and high accuracy. It won’t lose step in working, speed performance increased about 30%, improve the equipment speed heavily. Motor heat fell down 30%,prolong the life time of the motor. Vibration phenomenon significantly reduced,motor run more smoothly. Adopted the current control system technology,save power consumption;
Comes with English interface, friendly interface and simple operation; Rich software function, practical flame/plasma cutting process, with slot compensation, breakpoint recovery, original track retreat processing, any block start, the torch can be flexibly adjusted and selected in any position. the way; It adopts small line segment processing function, and the segment connection is smooth, suitable for high-speed plasma processing, widely used in machine plus cutting and advertising, iron and other industries; Can control 3-axis linkage; Dynamic graphics with 7-inch TFT LCD display; Use U disk to read programs and software upgrades; With 24 kinds of galleries, it has a simple nesting function, which is convenient for users to use; Fully compatible with CAD/CAM nesting software such as IBE and FASTCAM;
The CNC system is designed for two-axis portable cutting machine. It integrates XY two-phase hybrid stepping motor driver. The driver adopts full digital control, low heat generation, low noise, low vibration, low failure and excellent running characteristics.
Industrial-grade embedded core computing speed is greatly improved, quickly processing various tasks, advanced circular interpolation and lifting speed algorithm, perfect performance of machine tools to ensure smooth cutting;
Ultra-high cost performance system and two-axis drive, the signal between the height adjuster is changed by internal transmission, which improves the anti-interference ability, significantly reduces the fault point, and saves the signal cable and improves the assembly efficiency of the machine tool manufacturer.

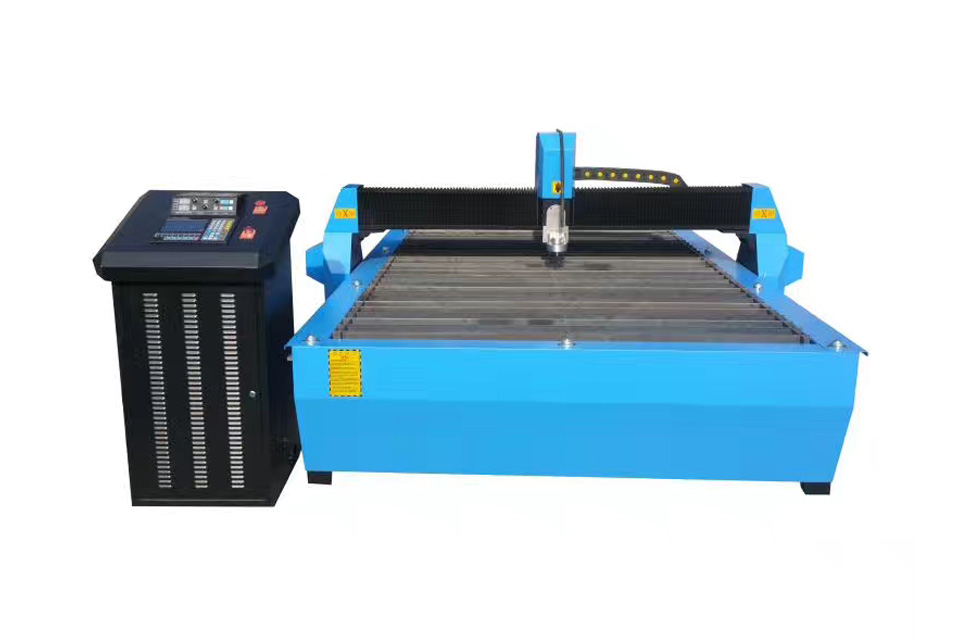

| Model | TW1530T CNC plasma metal cutting machine |
| Power Supply | Huayuan plasma power supply LGK-120IGBT |
| Working Area | 1500mm*3000mm |
| Control System | F2300A control system |
| Gantry | 20mm thick welding-free integrated treatment of the gantry holder |
| Feeding System | Universal ball feeding system |
| Motor | Chuangwei stepper motor |
| Exhaust System | Smoke exhaust system |
| Rails | 20 mm HIWIN square linear rail |
| Gear And Rack | 1.25 gear distance Helical rack and gear |
| Structure | Heavy-duty structure |
| Cabinet | Independent control cabinet |
| Software | Startcam nesting software |
| Special Treatment | The anti-rust treatment |
| Limit Switch | anti-wear limit switch |
| Accessery | multifunctional toolbox, 8G flash disk |
| Driver | Origional Leadshine driver |
