Brand Name: Touwen CNC
Model Number: TW1530P
Certification: ISO / CE
Place of origin: China
Minimum order Quantity: 1 set
Price: Negotiation
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 200pcs per month
Delivery Time: 3 days after received your payment
Packaging Details: lining--anti-static film package firstly, waterproof, moistureproof. Intermediate--around the perimeter of the box, there is bubble. Outer--export standard packing, fumigation-free plywood.

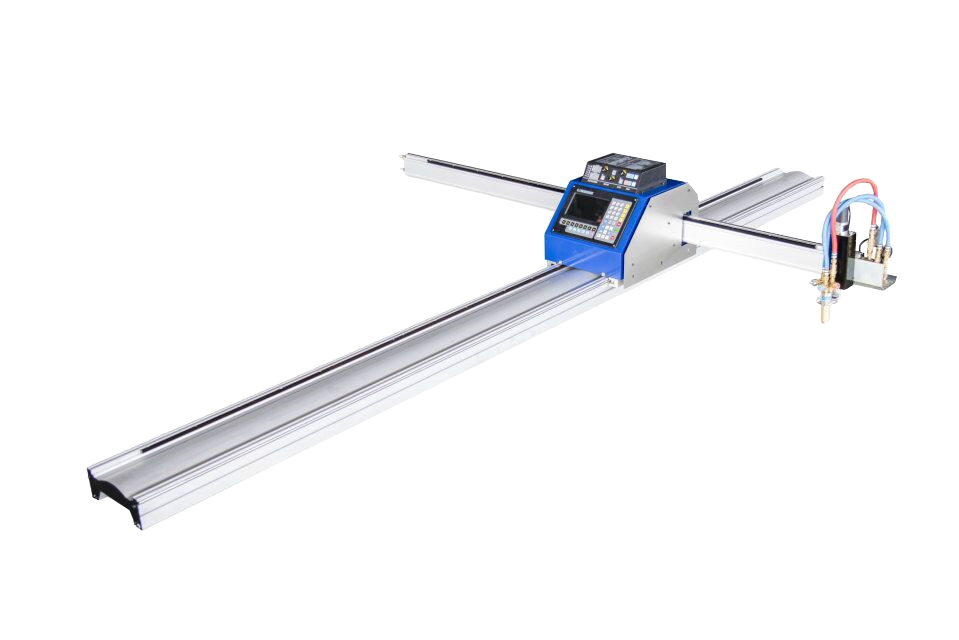

Product Name: Portable CNC Cutting Machine
Cutting Mode: Plasma / Flame
Cutting Speed: 0-4000mm/min
Control accuracy: ±0.01mm
Effective Cutting size: 1500*3000mm
Plasma Power Source: Huayuan 100A,120A, 200A or other
Height Control: Arc voltage height control (THC)
Working Temperature: -10℃-60℃, Relative Humidity, 0-95%.
Flame Cutting Thickness: 5-200mm
1. The machine is all welded as seamless steel structure. Steady structure and long life time
2. High configuration, high cutting speed and precision.
3. Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
4. Excellent graph library ,48 graphic.
Portable CNC plasma cutting machine is a automatic and high efficiency cutting equipment. It is widely used in all kinds of carbon materials, stainless steel and nonferrous metal precision sheet metal cutting.
1. The leader in the CNC cutting machine industry
2. Widest variety and specifications of welding and cutting equipment
3. Professional production process and equipment to ensure high quality products
4. Professional R&D team brings leading quality products
5. Large-scale production lines produce the most cost-effective production
6. Complete after-sales service system to provide timely and thoughtful services for our customer
| Cutting shape | any shapes |
| LCD Display Dimension | 7.0Inches |
| Effective Cutting Width (X axis) | 1500mm |
| Effective Cutting Length (Y axis) | 3000mm |
| Cross Beam Length | 2000mm |
| Longitudinal Rail Length | 3500mm |
| Cutting Speed | 0-4000mm per minute |
| Plasma Cutting Thickness | 0.5--20mm ( Depends on plasma power source capacity) |
| Flame Cutting Thickness | 5--200mm |
| Drive Mode | single-side |
| Cutting Mode | flame and plasma |
| Ignition device | Auto ignition device |
| Height regulating device | Arc voltage height control (THC) or Electric adjustable high |
| File transmission | USB transmission |
| Gas Pressure | Max. 0.1Mpa |
| Oxygen Pressure | Max.0.7Mpa |
| Cutting Gas | Acetylene/Propane |
| Plasma Power Source | Huayuan cut-100A,cut-130A, cut-200A or other |
| Plasma Air | Only pressed Air |
| Software | Smartnest Standard vision(support Auto CAD/ Solidworks/ CAXA/ Types etc.) |
| Plasma Air Pressure | Max. 0.8Mpa |
| Cutting precision | ±0.5mm National standard JB/T10045.3-99 |
| Control accuracy | ±0.01mm |
| Power Supply Voltage/Frequency | 220V 50HZ / 60HZ |
| Rated Power Supply | 200W |
| Working Temperature | -10℃-60℃, Relative Humidity, 0-95%. |
