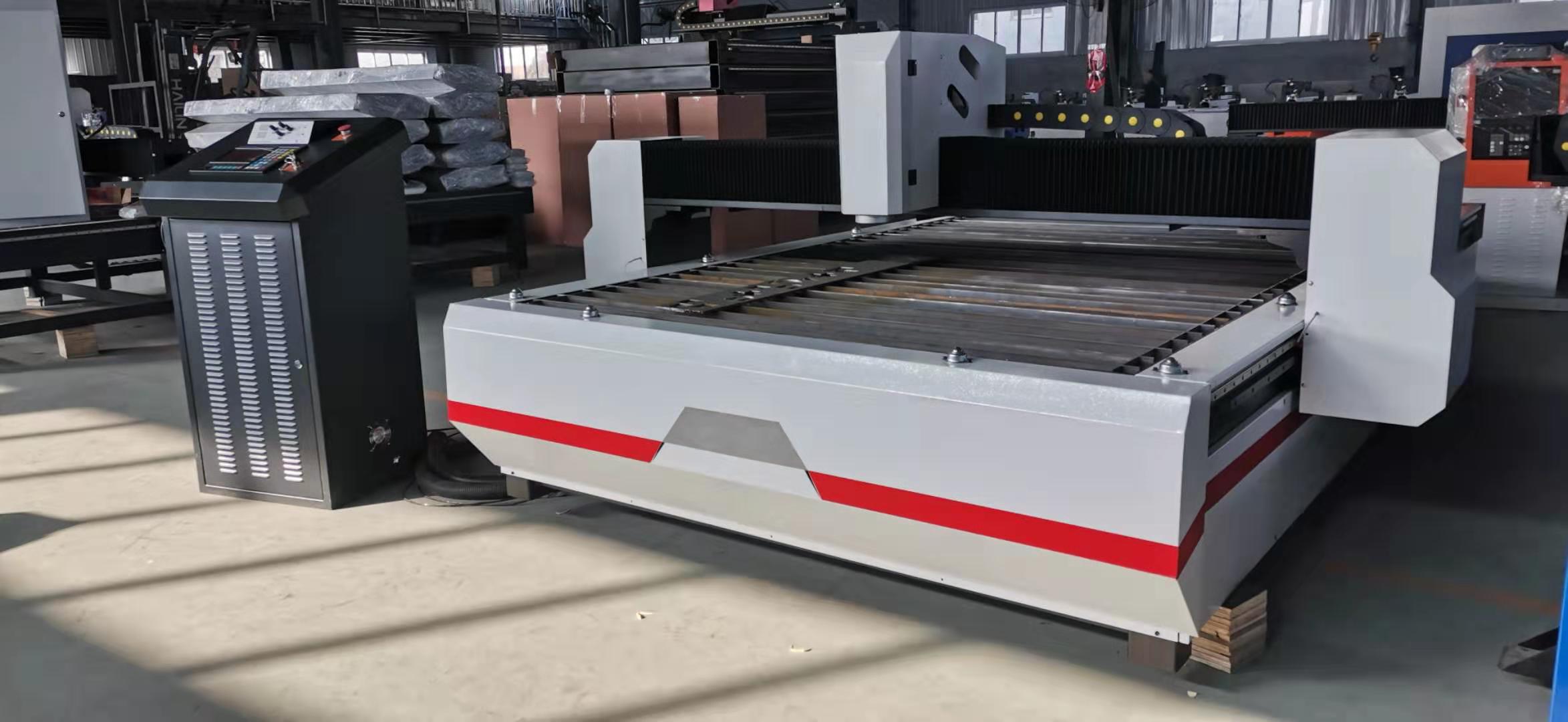

The gantry CNC plasma and flame cutting machine is specially designed for metal plate cutting,it is characterized of high automation and efficiency,easy operation and long service time. This CNC plasma and flame cutting machine is gantry structure with double-driven system, working size can be customized upon requirement.It can be used for cutting carbon steel, stainless steel and non-ferrous metal in any 2 d graphics,thus is widely used in metal cutting fields.
1. Steel hollow beam design ensures good heat dissipation without deformation.
2. The gear-rack driving motions without engagement gap ensure the machine running smooth at high speed.
3. Fully functionalized CNC system and optocoupler device enhance the super anti-jamming capability of the plasma system.
4. World’s top branded components and circuits ensure long service life.
5. Multiple cutting torches can be configured. Both flame and plasma torches are optional to meet the needs of cutting different materials in a range of thickness.
1,Flame cutting: Suitable for cutting carbon steel larger than 20mm;
2,Plasma cutting:Plasma cutting cost is 1/3~1/2 of flame cutting;So the plasma is suitable for cutting carbon steel within 20mm;
3,Stainless steel, aluminum or galvanized sheet etc materials suitable for plasma cutting.
Model | TW1530T | ||
Cutting Mode | Plasma | Flame | Flame and Plasma |
Driving Mode | Servo motor or stepper motor , Dual-side | ||
Cross beam Width(m) | 3m or 3.5m | ||
Effective Working Width(m) | 1m less than track width | ||
Guide rail Length (m) | According to your cutting demands | ||
Effective working length (m) | 2m less than guide rail length | ||
Flame Cutting thickness(mm) | 5-200 (specific type up to 300) | ||
Plasma Cutting thickness(mm) | According to the plasma generator, common 1-30mm | ||
Number of Cutting Torch | At customers’ requests | ||
Cutting Speed (mm/min) | 50-8800 | ||
Running speed (mm/min) | 12000 | ||
NC Controller | LANSUN or other China or import System you want | ||
Plasma Power | 100A ,120A , 200A ,300A ect . China , USA brand | ||
Programming software | China or Australia professional nesting software | ||
Operation language | English or Chinese or Russian | ||
